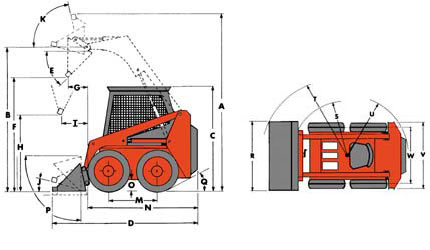

Dimensional Specifications:

A. Overall Operating Height

134.5 in

B. Height to Hinge Pin

102.5 in

C. Overall Height of Vehicle

71 in

D. Overall Length With Bucket

115 in

E. Dump Angle

29 °

F. Dump Height

82 in

G. Reach - Fully Raised

23.5 in

H. Height at 45° Dump Angle

56.5 in

I. Reach at 45° Dump Angle

27.5 in

J. Maximum Rollback at Ground

33 °

K. Maximum Rollback - Fully Raised

96 °

M. Wheelbase

33.2 in

N. Overall Length - Less Bucket

91 in

O. Ground Clearance

7 in

P. Maximum Grading Angle - Bucket

80 °

Q. Angle of Departure

24 °

R. Bucket Width

54 in

S. Clearance Circle Front - Less Bucket

41 in

T. Clearance Circle Front - With Bucket

67.38 in

U. Clearance Circle Rear

54 in

V. Overall Width - Less Bucket

50.75 in

W. Tread

40 in
